| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | Junqi |
| إصدار الشهادات: | CE,ROHS, UL |
| رقم الموديل: | JP400S-24V |
| الحد الأدنى لكمية: | 2 أجهزة كمبيوتر |
|---|---|
| الأسعار: | USD180~usd200/pc (Negotiable) |
| تفاصيل التغليف: | جناح للتصدير |
| وقت التسليم: | كما تم التأكيد |
| شروط الدفع: | T/T ، PayPal |
| القدرة على العرض: | 1000 قطعة/شهر |

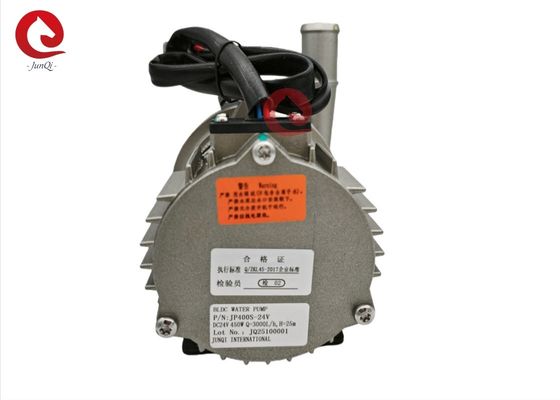

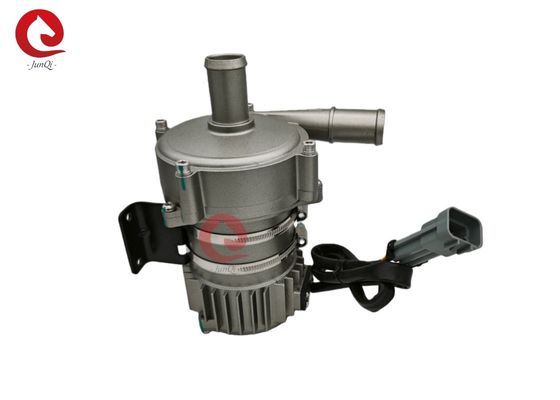

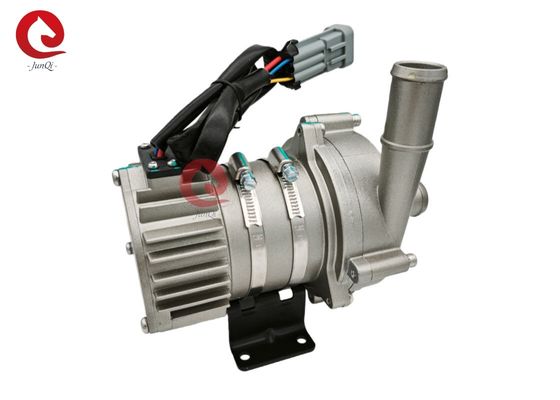

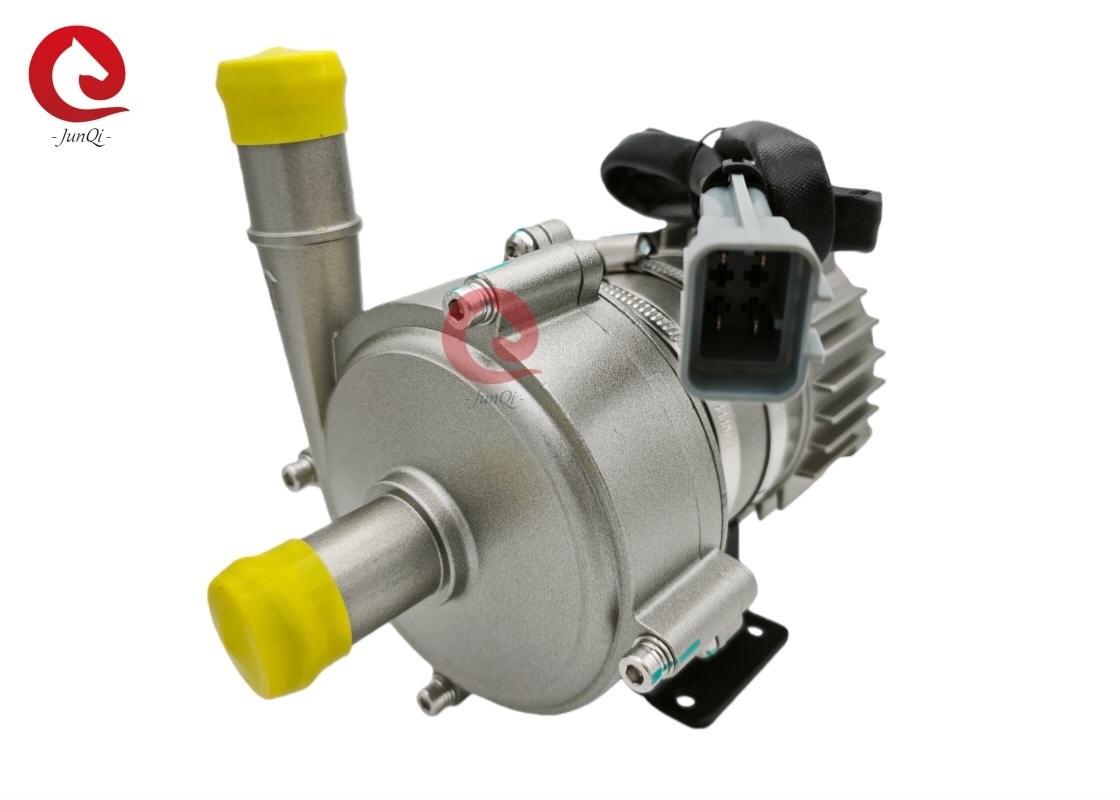

| اسم المنتج: | مضخة مياه المبرد الإلكترونية | نموذج: | JP400S-24V |
|---|---|---|---|
| جهد العمل: | 18~32 فولت تيار مستمر | التدفق المقدر: | 3000L/H. |
| الرفع القياسي: | 25m | القوة المقدرة: | 450W |
| مخرج/مدخل: | 25 ملم | طلب: | سيارة كهروضوئية ، حافلة كهربائية ، شاحنة كهربائية ، تبريد خلايا الوقود ، بطارية المركبات التجارية |
Water Pump features:
♦ Positive and negative electrode misconnection protection function;
♦ Soft start protection, small starting current;
♦ DC brushless motor high reliability, low thermal power, motor efficiency up to 90% energy saving better;
♦ Low noise, long service life.
Technical Parameters:
| JP400S-24V | |
| Item | Description |
| Rated Voltage | DC24V |
| Rated Currrent | ≤20A |
| Operating voltage | DC18-32V |
| Rated Power | 450W |
| Working Environment | -40~85℃ |
| Working Medium | 50% glycol aqueous solution |
| Protection level | IP68 |
| Working noise | ≤60dB ( Distance 1m) |
| Working life | ≥20000h |
| Weight | 2.8kg |
| Protection function | Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling. |
Working Performance curve:
Dimensions:
Application:
Commerical Vehicle Battery Energy Storage Battery Vehicle Thermal Management Data Center
Thermal Management Liquid Thermal Management Liquid System
Cooling Systme Cooling System
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet customized .
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
For more product information, please feel free contact with us via email: ivanzhu@junqitrading.com
